Athletics Track Size: Complete Guide to Dimensions, Layout & Markings

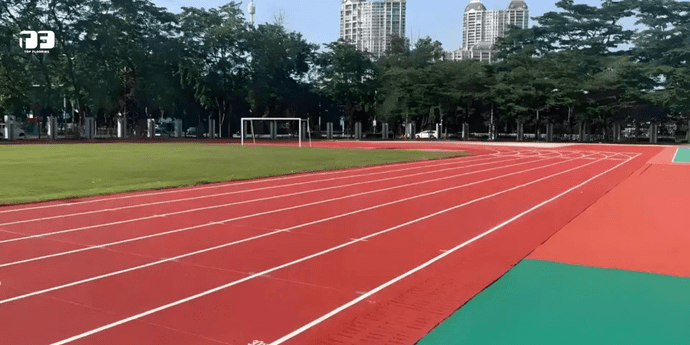

A standard athletics track is 400 metres in circumference, measuring 176.91 metres in length and 92.52 metres in width as per World Athletics (formerly IAAF) specifications. The track consists of two straight sections of 84.39 metres each and two semicircular curves with an inner radius of 36.80 metres. Most competition tracks have 8 lanes, each 1.22 metres wide, though some facilities offer 9 or 10 lanes.

This 400m dimension is the global benchmark  used in the Olympics, Commonwealth Games, Asian Games, and every serious athletics competition around the world, including all Khelo India and SAI-recognised facilities in India.

Why Athletics Track Size Matters More Than You Think

After 20+ years of working on athletics infrastructure across India  from school grounds in tier-3 cities to SAI-affiliated academies in metro regions  the single most common and costly mistake I have seen is building a track without understanding the full specification picture. A track that is 2 metres short in circumference or has lane widths of 1.10 metres instead of 1.22 metres will fail official inspection, waste your entire investment, and be ineligible for any sanctioned competition.

This guide covers everything: exact dimensions, lane specifications, marking standards, surface materials, construction steps, cost estimates for India, and what separates a track that lasts 15 years from one that needs resurfacing in three.

Standard Athletics Track Dimensions  Complete Specification Table

Breaking Down the 400m Track Layout

The Two Straights

Each straight section runs exactly 84.39 metres. This measurement is precise because the two 100m sprint races, the 100m and 110m hurdles, are run on the straight. The finishing straight (main straight) typically faces the main grandstand and contains the finish line for all races.

The Two Semicircular Curves

Each curve has an inner radius of 36.80 metres. The curve length for each semicircle is approximately 115.61 metres. This geometry is what produces the 400m total when combined with the two straights.

The tighter the curve radius, the more centrifugal force is placed on athletes. World Athletics specifies 36.80m as the minimum inner radius for a competition track; anything tighter compromises biomechanics and athlete safety.

Lane Numbering

Lanes are numbered 1 through 8 (or 9/10 on wider tracks), with Lane 1 being the innermost lane. Lane 1 is measured along the inner edge of its kerb. Lanes 2 through 8 are measured 20 cm from the inside of the preceding lane line; this is the key measurement that often gets wrong during construction.

Staggered Start Positions  The Most Misunderstood Part of a Track

Staggered starts exist because each lane follows a different circumference. If all athletes started at the same line, outer lane runners would travel more distance. The stagger compensates for this.

These stagger positions must be marked precisely using certified measurement equipment. Even a 5cm error in stagger marking can result in disqualification of results in competition.

Athletics Track Lane Width Detailed Breakdown

Lane width is one of the most frequently debated specifications in track construction. Here is what World Athletics mandates:

• Competition tracks: 1.22 metres per lane, with the outermost lane having an additional 30 cm for safety
• Training/school tracks: A minimum of 1.00 metre is accepted, though 1.22m is always recommended
• Hurdles lanes: Must be a minimum of 1.22m to allow proper hurdle placement at 1.00m offset from lane lines

Lane lines themselves are 5 cm wide and painted in white. Critically, the lane line belongs to the higher-numbered lane  meaning the measured width of Lane 3 includes the right boundary line of Lane 3, not the left.

Indoor Athletics Track Size

Indoor tracks follow a different standard. World Athletics specifies indoor facilities as follows:

Indoor tracks use banked curves  typically angled between 10 and 18 degrees  to compensate for the tighter 200m radius. Without banking, athletes would lose traction and speed on every curve. This is why indoor track construction is significantly more complex and expensive than outdoor.

India currently has fewer than 10 certified indoor athletics tracks. This is a massive infrastructure gap  and an opportunity for institutions and state sports authorities to invest.

Official Markings on an Athletics Track  Full Guide

A properly marked athletics track carries numerous event-specific lines. Here is what should appear on a World Athletics compliant track:

Synthetic Acrylic vs PU Rubber  Surface Materials Compared

Two surface systems dominate athletics track construction today:

For most Indian institutions  schools, colleges, municipal bodies  synthetic acrylic is the practical choice. It delivers consistent performance, handles India’s monsoon and UV load well, and costs 40–60% less than PU rubber systems. For state-level or national competition tracks, a full-pour or prefabricated PU system is the appropriate specification.

Step-by-Step Athletics Track Construction Process

Based on projects executed across Bengaluru, Delhi NCR, Hyderabad, and Pune, here is the standard construction sequence for a synthetic athletics track:

Step 1  Site Survey & Design Topographical survey to establish existing levels. Design to achieve proper drainage slope (1:100 cross-fall recommended).

Step 2  Subgrade Preparation Excavation and compaction of natural soil to achieve CBR value of minimum 8%. Poor subgrade preparation is the number one cause of premature cracking.

Step 3  Sub-base Layer 75–100mm compacted granular sub-base (GSB) layer. This distributes load and improves drainage.

Step 4  Base Course 40–50mm dense bituminous macadam (DBM) or concrete base. Concrete is preferred for longevity. For concrete bases, M25 grade with minimum 150mm thickness is standard.

Step 5  Levelling & Priming Surface is ground flat to ±3mm tolerance over a 3m straight edge. Concrete primer applied as bonding agent.

Step 6  Acrylic Resurfacer One or two coats of acrylic resurfacer to fill surface texture and create uniform base for colour coats.

Step 7  Colour Coats Two to three coats of acrylic colour coat (typically brick red, terracotta, or dark green for athletics tracks). Each coat contains silica sand for grip.

Step 8  Line Marking Precision marking using certified surveying equipment. All event-specific lines painted in correct colours and dimensions.

Athletics Track Construction Cost in India (2025)

Cost varies significantly based on track type, surface material, and location. Here is a realistic range based on current market rates:

What drives cost in India:

• Base type (concrete vs bituminous)
• Number of lanes (6, 8, or 10)
• Surface system (acrylic vs PU)
• Drainage infrastructure
• Location and site accessibility
• Line marking complexity
• Lighting and fencing (if included)

One important note: never evaluate track quotations on price per square metre alone. A contractor quoting ₹700/sq m on an acrylic system may be skipping the resurfacer coat or reducing colour coat thickness from 3 coats to 1. Always specify the layer system in writing before awarding any contract.

School Athletics Track Size in India

Most Indian schools cannot accommodate a full 400m track. Here are practical alternative configurations:

A 100m straight track with proper acrylic surface and line marking can still develop excellent sprint athletes and is far more valuable than no infrastructure at all.

Common Mistakes in Athletics Track Construction

From two decades of field experience, these are the errors that cost institutions lakhs in rework:

1. Insufficient base preparation  The most expensive mistake. A weak sub-base will produce cracking within 2–3 monsoon cycles regardless of how good the surface material is.

2. Wrong inner radius  Many contractors build curves with radii of 32–34m to fit tighter sites. This changes the total circumference and renders the track non-compliant.

3. Inaccurate stagger marking  Even professional facilities have been found with stagger errors of 30–50cm. Always use a certified surveyor with theodolite equipment for marking.

4. Single-coat colour application  Standard specification requires a minimum of two colour coats. Single-coat application reduces grip and fades within 12–18 months.

5. No drainage planning  A flat track will pool water at the curves during monsoon, leading to surface delamination and algae growth.

Maintenance and Durability of Athletics Tracks

A well-constructed synthetic acrylic track requires minimal but consistent maintenance:

• Monthly: Sweep to remove leaf litter, dust, and debris. Do not use hard metal brooms.
• Quarterly: Wash with mild detergent and water. Check for surface cracks.
• Annually: Professional inspection. Apply crack sealant where needed.
• Every 5–8 years: Full resurfacing with new acrylic colour coat and fresh line marking.

Tracks that are properly maintained last 10–15 years before requiring full replacement. Poorly maintained tracks need resurfacing within 3–5 years.

Safety Considerations

• Minimum 1m safety zone beyond all lane boundaries
• Kerb height must not exceed 5cm to prevent tripping
• Surface coefficient of friction must be 0.5 or higher (wet) as per World Athletics guidelines
• Shock absorption value of 35–50% is recommended for training tracks to protect athlete joints
• Adequate drainage to prevent waterlogging  a wet acrylic track can be 40% more slippery than a dry one

Conclusion

An athletics track is one of the most demanding sports infrastructure projects  demanding in precision, in material selection, in construction sequence, and in long-term maintenance commitment. The 400m standard exists for a reason: every dimension, from the 36.80m curve radius to the 1.22m lane width, serves a biomechanical or competitive purpose that cannot be approximated.

Whether you are planning a national-level competition facility or a simple 4-lane school track, the fundamentals do not change. Get the base right. Use certified materials. Mark with precision. And maintain consistently.

For institutions, architects, and sports planners in India, the time to invest in quality athletics infrastructure is now  with Khelo India and state government grants making funding more accessible than ever before. A well-built track does not just host competitions. It builds athletes, builds habits, and builds communities that return to that track for decades.

If you are planning a track project and need guidance on surface selection, layer systems, or layout design, connect with a certified synthetic sports flooring specialist before any ground is broken.
