Shuttle Court Measurement: Exact Dimensions, Layout Diagram & Markings Explained

Shuttle court measurement refers to the standard badminton court size of 13.40 meters (44 ft) in length and 6.10 meters (20 ft) in width for doubles, and 5.18 meters (17 ft) in width for singles, with clearly defined service lines, center line, and boundary markings as per official badminton rules.

Standard Shuttle Court Dimensions

Official Measurements (As per International Standards)

The length remains the same, but width changes for singles and doubles play.

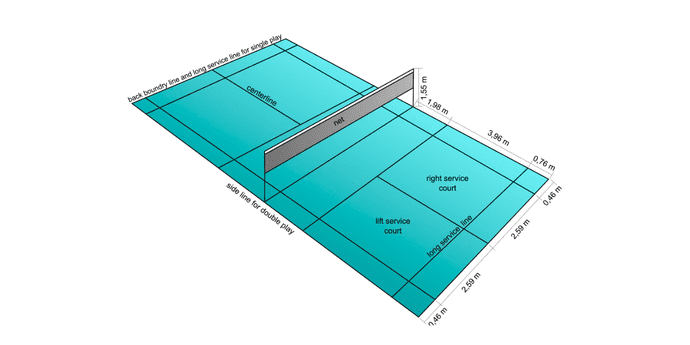

Shuttle Court Layout Diagram (Visual Understanding)

A badminton court is divided into multiple sections:

• Net divides the court equally
• Service courts define serving zones
• Boundary lines define play limits

Visual diagrams help ensure accurate badminton court construction and marking placement

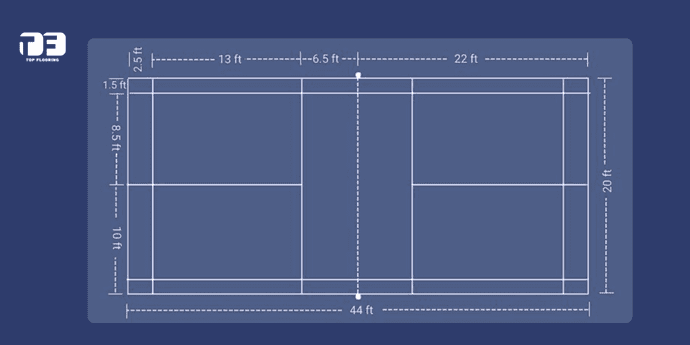

Detailed Shuttle Court Measurements & Markings

Important Line Measurements

• Short Service Line: 1.98 m from net
• Center Line: Divides service boxes
• Back Boundary Line: End of court
• Doubles Long Service Line: Slightly inside baseline

Line Thickness

• Standard: 40 mm (1.57 inches)
• Must be clearly visible (white/yellow)

Badminton Court Markings Explained

Types of Lines

• Baseline: Marks court end
• Sidelines: Singles & doubles boundaries
• Service Lines: Control serve rules
• Center Line: Divides left/right service courts

Accurate markings ensure fair gameplay and rule compliance

Singles vs Doubles Court Difference

This is one of the most commonly misunderstood aspects in court measurement.

Total Space Required (Including Run-Off Area)

To build a professional court:

• Recommended Area:
  • Length: 17–18 meters
  • Width: 9–10 meters

Extra space ensures:

• Player safety
• Better movement
• Professional gameplay experience

Shuttle Court Flooring & Construction Guide

Best Surface: Synthetic Acrylic Flooring

Modern badminton courts (especially outdoor) use synthetic acrylic flooring systems because:

• Anti-slip surface
• Consistent shuttle bounce
• UV & weather resistance
• Low maintenance
• Long lifespan

Construction Steps

1. Base preparation (concrete/asphalt)
2. Acrylic coating layers
3. Cushion system (optional)
4. Line marking with precision
5. Net installation

Proper construction ensures performance + durability

Cost of Shuttle Court Construction in India (2026)

Cost depends on:

• Location
• Base work
• Material quality
• Cushion layers

Common Mistakes in Shuttle Court Measurement

Avoid these critical errors:

• Incorrect line spacing
• Poor base leveling
• Ignoring run-off area
• Wrong net height
• Low-quality paint

These mistakes can ruin gameplay and increase maintenance costs

Expert Insights

With over 20+ years of experience in synthetic acrylic sports flooring, professional contractors consistently emphasize:

• Precision in measurement is non-negotiable
• Acrylic systems outperform traditional surfaces outdoors
• Proper slope and drainage are essential in India’s climate

Pro Tips to Build a Perfect Shuttle Court

• Always follow official dimensions
• Use high-quality acrylic coatings
• Ensure proper drainage (outdoor courts)
• Use bright, visible line colors
• Plan space for lighting (if required)

Future Trends in Shuttle Courts (2026 & Beyond)

• Cushioned acrylic surfaces for injury reduction
• Multi-purpose courts
• Smart sports surfaces
• Eco-friendly coatings

Conclusion

Accurate shuttle court measurement is the backbone of a professional badminton court. From dimensions and layout to markings and flooring, every detail plays a crucial role in ensuring performance, safety, and durability.

A well-designed court not only enhances gameplay but also increases the long-term value of the facility. Whether for schools, clubs, or commercial projects, following standard measurements and using modern materials like synthetic acrylic flooring ensures a future-ready sports surface.
