Volleyball court dimensions are standardized at 18 meters × 9 meters (59 ft × 29.5 ft) for indoor play, divided equally by a center line and net. The official net height is 2.43 meters (7 ft 11 5/8 in) for men and 2.24 meters (7 ft 4 1/8 in) for women, with a recommended free playing space around the court for safe movement.
This guide explains everything about volleyball court size, layout, markings, construction, flooring, and cost – based on 20+ years of sports infrastructure experience.
What Are Volleyball Court Dimensions?
Volleyball court dimensions define the length, width, net height, and playing zones required for standard gameplay. These dimensions are regulated by international bodies such as FIVB (Fédération Internationale de Volleyball).
A properly dimensioned court ensures:
- Fair gameplay
- Player safety
- Consistent ball movement
- Tournament compliance

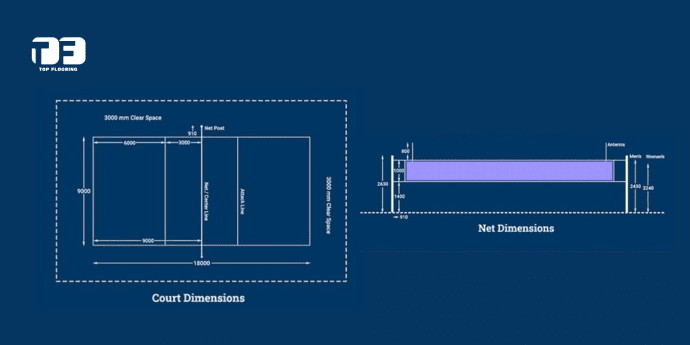

Official Volleyball Court Measurements (Standard Guide)
Standard Volleyball Court Dimensions Table
| Element | Measurement (Meters) | Measurement (Feet) |
| Court Length | 18 m | 59 ft |
| Court Width | 9 m | 29.5 ft |
| Attack Line Distance | 3 m | 9.8 ft |
| Free Zone (Minimum) | 3–5 m | 10–16 ft |
| Net Height (Men) | 2.43 m | 7 ft 11 5/8 in |
| Net Height (Women) | 2.24 m | 7 ft 4 1/8 in |
| Line Width | 5 cm | 2 inches |
Volleyball Court Layout Explained
The volleyball court is divided into symmetrical zones that define player roles and movement.
Key Layout Sections:
- Front Zone (Attack Area) – 3 meters from net
- Back Zone – defensive area
- Service Area – behind baseline
- Free Zone – space outside court for movement
Volleyball Court Markings and Lines
Precise markings are essential for professional courts.
Important Lines:
- Baseline (end boundary)
- Sidelines (side boundaries)
- Center line (divides court)
- Attack line (3-meter line)
Marking Specifications:
- Line width: 5 cm
- High-contrast colors for visibility
Indoor vs Outdoor Volleyball Court Dimensions
While dimensions remain the same, construction and materials differ significantly.
Indoor vs Outdoor Comparison
| Feature | Indoor Court | Outdoor Court |
| Surface | Wooden / PU flooring | Acrylic / Concrete / Sand |
| Weather Impact | None | High (UV, rain, dust) |
| Maintenance | Moderate | Low (with acrylic flooring) |
| Cost | Higher | More economical |
| Usage | Professional / tournaments | Recreational / multi-use |
Expert Insight: Outdoor volleyball courts in India are increasingly built using synthetic acrylic flooring due to durability and weather resistance.
Volleyball vs Badminton vs Basketball Court Dimensions
Multi-Sport Comparison Table
| Feature | Volleyball | Badminton | Basketball |
| Court Size | 18 × 9 m | 13.4 × 6.1 m | 28 × 15 m |
| Net Height | 2.24–2.43 m | 1.55 m | N/A |
| Surface | Acrylic / Wood | Wooden / Synthetic | Acrylic / PU |
| Play Style | Team-based | Fast rallies | Continuous play |
Step-by-Step Volleyball Court Construction Process
Based on 20+ years of on-site experience, here’s how a professional volleyball court is constructed:
1. Site Preparation
- Land leveling
- Soil compaction
- Drainage planning
2. Base Construction
- PCC or asphalt base
- Thickness: 100–150 mm
3. Surface Preparation
- Grinding and crack repair
- Primer application
4. Flooring Installation
- Acrylic coating system (outdoor)
- PU or wooden flooring (indoor)
5. Line Marking
- Precision marking with sports-grade paint
6. Equipment Installation
- Net poles
- Net system
- Optional fencing
Materials Used in Volleyball Court Construction
Common Materials:
- Concrete or asphalt base
- Acrylic coating system
- PU flooring (indoor)
- Silica sand (anti-slip texture)
Material Specification Table
| Material | Purpose | Benefit |
| Concrete Base | Foundation | Stability & durability |
| Acrylic Coating | Surface layer | Grip & UV resistance |
| PU Flooring | Indoor courts | Cushion & comfort |
| Silica Sand | Texture | Anti-slip safety |
Why Acrylic Flooring is Ideal for Volleyball Courts
Acrylic court flooring is widely used for outdoor volleyball courts in India.
Key Advantages:
- UV-resistant and weatherproof
- Non-slip textured surface
- Consistent ball response
- Low maintenance
- Cost-effective
Based on real project experience, acrylic systems outperform traditional concrete finishes in both durability and safety.
Volleyball Court Construction Cost in India (2026)
Volleyball Court Construction Costs vary based on materials, location, and specifications.
Cost Breakdown Table
| Component | Estimated Cost (₹) |
| Base Construction | ₹2 – ₹4 lakh |
| Acrylic Flooring | ₹2.5 – ₹5 lakh |
| Poles & Net System | ₹50,000 – ₹1 lakh |
| Fencing (optional) | ₹1 – ₹3 lakh |
| Lighting (optional) | ₹1 – ₹2 lakh |
| Total Cost | ₹5 – ₹12 lakh |
Factors Affecting Cost:
- Site condition
- Material quality
- Location
- Additional features
Maintenance and Durability
A well-constructed volleyball court lasts 8–12 years.
Maintenance Tips:
- Regular cleaning
- Crack inspection
- Recoating every 4–6 years
Common Mistakes in Volleyball Court Construction
Based on decades of field experience:
- Incorrect court dimensions
- Poor base compaction
- Lack of proper slope (water issues)
- Low-quality materials
- Improper line marking
Safety Considerations
Key Safety Features:
- Anti-slip surface
- Proper drainage
- Shock-absorbing layers
- Adequate free zone
How Many Volleyball Courts Fit in a Given Area?
Example:
| Area Size | Number of Courts |
| 1 Acre Land | 3–4 courts |
| School Ground | 1–2 courts |
| Multi-purpose Hall | 1 court |
Insight: Efficient planning allows multiple courts in institutional setups.
Backyard Volleyball Court (Small Space Guide)
For compact spaces:
- Minimum size: 14 × 7 m
- Use simplified markings
- Portable net system
Ideal for:
- Schools
- Residential societies
- Training areas
Temporary vs Permanent Volleyball Courts
Comparison Table
| Feature | Temporary Court | Permanent Court |
| Setup Time | 1–2 days | 2–4 weeks |
| Cost | Low | High |
| Durability | Short-term | Long-term |
| Surface | Portable mats | Acrylic / PU / Wood |
Future Trends in Volleyball Court Design (2026 & Beyond)
- Smart courts with sensors
- Eco-friendly coatings
- Multi-sport surfaces
- LED-integrated flooring
Conclusion
Understanding accurate volleyball court dimensions is essential for designing high-quality sports infrastructure. From correct measurements and layout to choosing the right flooring system, every detail impacts performance and durability.
Based on 20+ years of industry experience, synthetic acrylic flooring offers the best balance of cost, durability, and safety for outdoor volleyball courts in India. Whether planning a school facility, sports complex, or recreational court, investing in professional construction ensures long-term value and optimal playability.
As sports infrastructure continues to grow in India, well-designed volleyball courts will play a key role in promoting athletic development and community engagement.
Frequently Asked Questions (FAQs)
18 m × 9 m (59 ft × 29.5 ft).
2.43 m for men and 2.24 m for women.
3 meters from the center line.
₹5 lakh to ₹12 lakh depending on specifications.
Yes, they can be combined with badminton or basketball courts.
At least 24 × 15 m including free zone.
